Intelligent Quad cursor for easy CAD drawing

เร่งความเร็วการทำงานของคุณด้วยเคอร์เซอร์ Quad ™ ด้วยเคอร์เซอร์ที่ปรับเปลี่ยนตามบริบทใหม่การวาด CAD แบบง่ายเพียงคลิกเดียว

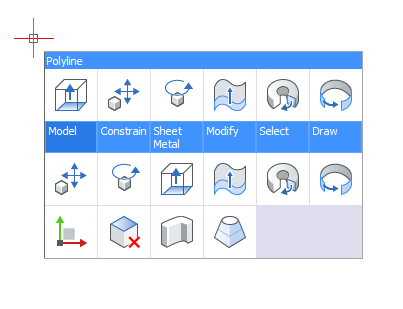

2D Drafting The intelligent Quad cursor is an alternative to grip editing entities. While grip glyphs accumulate clutter, the Quad cursor, with its compact size, keeps your screen clean. It does come with a rich set of editing operations. And it’s intelligent: the Quad cursor knows in how many dimensions (2D or 3D) you are drawing and immediately adapts to show commands you need.
2D Drafting

เคอร์เซอร์ Quad อัจฉริยะเป็นอีกทางเลือกหนึ่งในการจับหน่วยงานแก้ไข ในขณะที่ร่ายมนตร์จับถนัดขวาเคอร์เซอร์ Quad ซึ่งมีขนาดกะทัดรัดทำให้หน้าจอของคุณสะอาด มีชุดการดำเนินการแก้ไขมากมาย และอัจฉริยะ: เคอร์เซอร์ Quad รู้ขนาดเท่าใด (2D หรือ 3D) ที่คุณกำลังวาดและปรับให้เหมาะสมเพื่อแสดงคำสั่งที่คุณต้องการ
3D Modeling

เคอร์เซอร์ Quad จะปรับให้เข้ากับเวิร์กโฟลว์ 3D แบบอัตโนมัติ คุณลักษณะต่างๆเช่นการวาดหน้าด้วยการคลิกเพียงครั้งเดียวช่วยให้การวาดภาพง่ายขึ้นใน CAD คุณยังสามารถจัดการกับของแข็งโดยใช้ตัวเลือก Quad เช่นลบและกด / ดึง
3D Modeling The Quad cursor intuitively adjusts to 3D workflows. Features such as extruding faces with just one click improve easy drawing in CAD. You can also manipulate solids using the Quad’s options, such as subtract and push/pull.
Hotkey Assistant When edge and face selection modes are active, the new Hotkey Assistant displays options available. Cycle through them by tapping the Ctrl key.
Hotkey Assistant

เมื่อเปิดใช้โหมดเลือกขอบและใบหน้าอยู่ผู้ช่วยคีย์ลัดใหม่จะแสดงตัวเลือกต่างๆ หมุนรอบตัวด้วยการแตะคีย์ Ctrl
Manipulator

วิดเจ็ต Manipulator ช่วยให้คุณสามารถหมุน, ย้าย, mirror หรือปรับเอนทิตี้ได้ตามแกนหรือระนาบ การป้อนข้อมูลแบบไดนามิกช่วยให้สามารถควบคุมตำแหน่งได้อย่างแม่นยำ หากคุณกดแป้น Ctrl ค้างไว้เมื่อคลิกคุณจะสร้างสำเนาของเอนทิตีที่เลือก

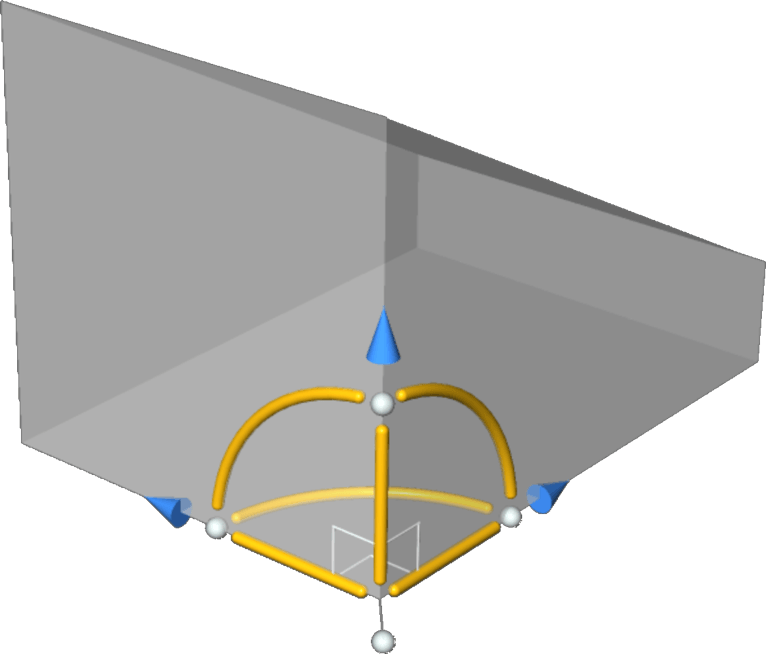

Manipulator The Manipulator widget lets you rotate, move, mirror or scale entities along an axis or plane. Dynamic dimension input allows for precise positioning control. If you hold the Ctrl-key when you click, you’ll create a copy of the selected entities.
